WHEN IT COMES TO APPEARANCE AND FUNCTION CHOOSE LINEAR DESIGNS

Our LINEAR DESIGN lighting packages give your space not only a one of a kind look, but also provide unparalleled lighting coverage when its needed most!

TRANSFORM THE LOOK OF BAYS!

Experience the ultimate level of visibility and increase your level of service with our Linear Design systems. Available in a wide range of sizes and outputs, there is a solution to fit your needs.

BUY NOW

LINEAR DESIGN HIGHLIGHTS

CONNECTION

Long bayonet with buckle for strong reliable connections.

WIRING

Independent external wiring makes for safer and better installation.

WATERPROOF

Integrated waterproof rubber casing is safer and not exposed.

3 PIN PLUG

Makes for maximum connectivity when compared to other brands.

HOUSEING

Aviation aluminum is durable and also has a good texture.

OUTPUT

Light board and power supply are independently typeset.

LINEAR DESIGN OPTIONS

- Below are a list of available options with our line of LINEAR DESIGN lighting -

WD5018

VOLTAGE: AC100-240V (input)

SIZE: 92.51in*185.43in*3.14in

POWER: 760W

LUMEN: 110-130LM/W

CRI: >85

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

WD3018

VOLTAGE: AC100-240V (input)

SIZE: 92.51in*185.43in*0.78in

POWER: 408W

LUMEN: 110-120LM/W

CRI: >90

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: Pvc+pc Connectors +3-end Wires (14)

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

WD2078

VOLTAGE: AC100-240V (input)

SIZE: 92.51in*185.43in*0.78in

POWER: 306W

LUMEN: 110-120LM/W

CRI: >90

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: Pvc+pc Connectors +3-end Wires (14)

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

WDA40

VOLTAGE: AC100-240V (input)

SIZE: 110.23in*185.03in*1.57in

POWER: 24W/M

LUMEN: 110-120LM/W

CRI: >85

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: 16 Hanging Wires + connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

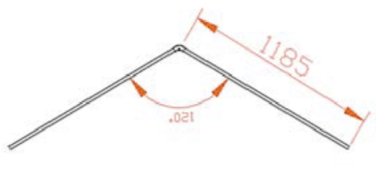

WDC205

VOLTAGE: AC100-240V (input)

SIZE: 0.78in Arrow 120 Degrees

POWER: 32W/pcs

LUMEN: 110-120LM/W

CRI: >90

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: Hanging Wires

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

WDC505

VOLTAGE: AC100-240V (input)

SIZE: 3.14in Arrow 120 Degrees

POWER: 115W/pcs

LUMEN: 110-120LM/W

CRI: >80

CCT: White

MATERIAL: Aluminum+PC Cover

ACCESSORIES: Hanging Wires

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw it with the installation buckles

WDE1016

+P1 Frame+12pcs G8001

VOLTAGE: AC100-240V (input)

SIZE: N/A

POWER: 864W

LUMEN: 110-120lm/w

CRI: >90

CCT: White (5500-6000k)

MATERIAL: Aluminum+PP+PC+LED

ACCESSORIES: Screws+T plate+mountings

REMARK: Customizable


WDC80

VOLTAGE: AC100-240V (input)

SIZE: 100.07in*192.63in*3.14in

POWER: 360W

LUMEN: 110-130lm/w

CRI: >85

CCT: White

MATERIAL: Aluminum+pc Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw in with the installation buckles

WDC240

VOLTAGE: AC100-240V (input)

SIZE: 94.48in*188.97in*9.44in

POWER: 60W/M

LUMEN: 110-120lm/w

CRI: >95

CCT: White

MATERIAL: Aluminum+pc Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw in with the installation buckles

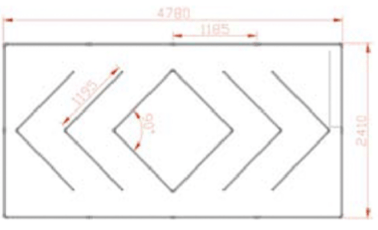

WD2058

VOLTAGE: AC100-240V (input)

SIZE: 94.88in*4780mm*20mm

POWER: 340W

LUMEN: 110-120lm/w

CRI: >90

CCT: White

MATERIAL: Aluminum+pc Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw in with the installation buckles

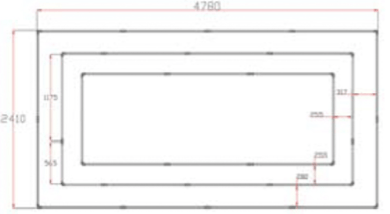

WD2048

VOLTAGE: AC100-240V (input)

SIZE: 2410mm*4780mm*20mm

POWER: 508W

LUMEN: 110-120lm/w

CRI: >90

CCT: White

MATERIAL: Aluminum+pc Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw in with the installation buckles

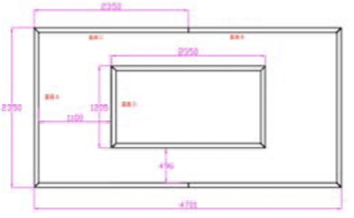

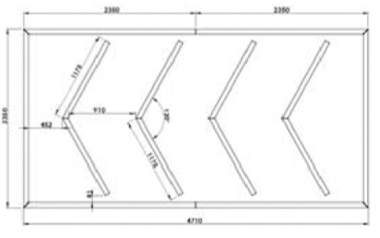

WD5098

VOLTAGE: AC100-240V (input)

SIZE: 2350mm*4710mm*80mm

POWER: 539W

LUMEN: 110-130lm/w

CRI: >85

CCT: White

MATERIAL: Aluminum+pc Cover

ACCESSORIES: Pvc+pc Connectors

REMARK: Installation: 1 Tie up to the ceiling; 2 Screw in with the installation buckles

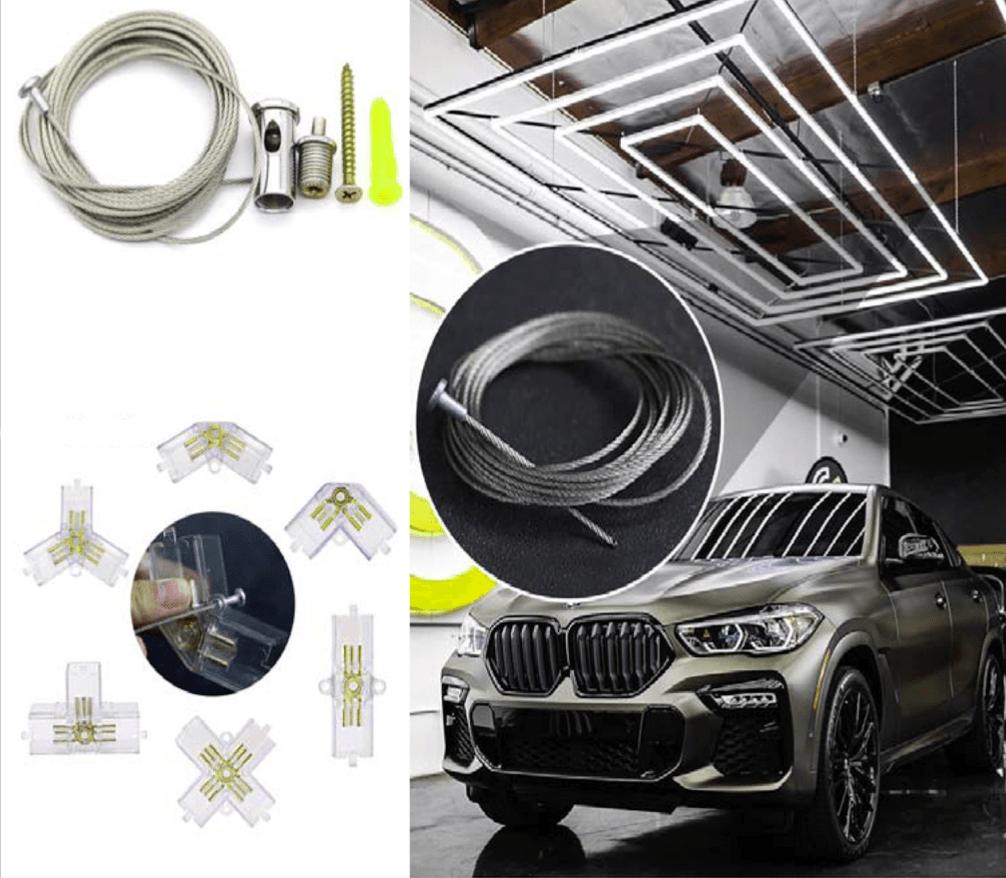

Suspended Ceiling Light Kit (DS3M)

FUNCTION:

  • This system makes hanging our lighting grid system a breeze with the option of fully adjusting the height from as little as 100mm to 2950mm
  • The lockset fixings gives you the ability to adjust the height as needed to get the perfect height
  • The system is sleek in design and easy to use

KIT INCLUDES:

  • (1) 3 meter length stainless steel 7 braid cable with one end fixed point
  • (1) Ceiling Fixing
  • (1) Threaded sleeve ceiling lockset fixing
  • (1) Expansion screw
