TUNNEL BAYS
WHEN YOU NEED PERFORMANCE LIGHTING IN THE AUTOMOTIVE INDUSTRY CHOOSE TUNNEL BAYS
Our TUNNEL BAY lighting packages gives your bay all new lighting standards and performance with unparalleled visibility!
ACHIEVE SHOW QUALITY
PAINT CORRECTIONS
Experience the ultimate level of visibility and increase your level of service with our Tunnel Bay systems. Available in a wide range of sizes and outputs, there is a solution to fit your needs.
TUNNEL BAY HIGHLIGHTS

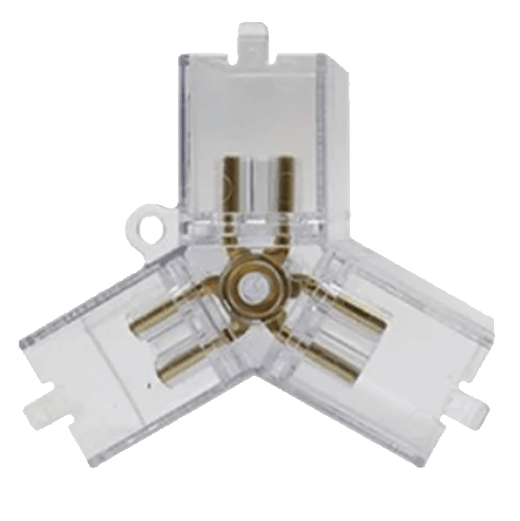

CONNECTION

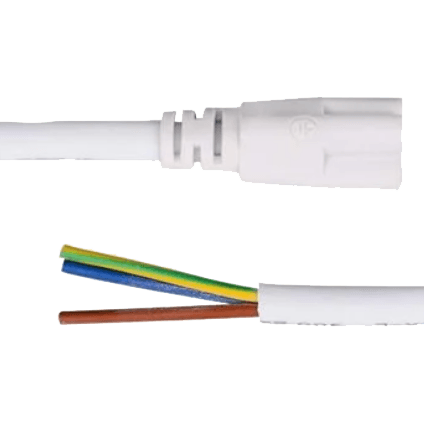

WIRING

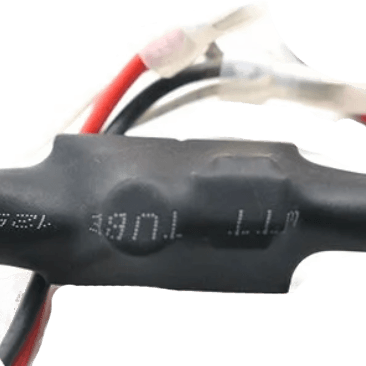

WATERPROOF

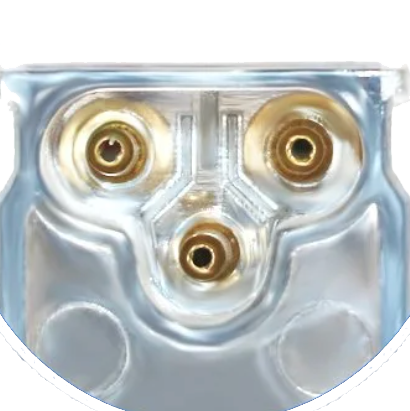

3 PIN PLUG
HOUSEING

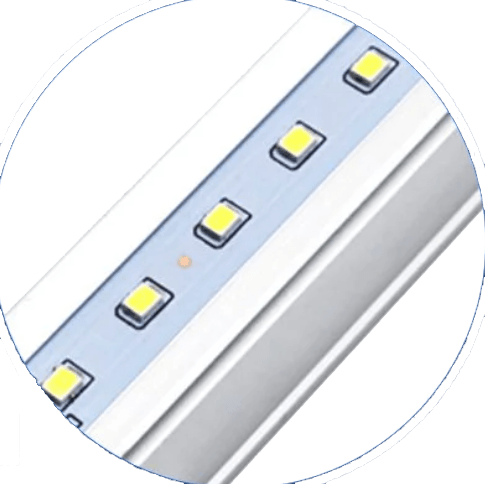

OUTPUT
TUNNEL BAY OPTIONS
- Below are a list of available options with our line of TUNNEL BAY lighting -
WDE1011
VOLTAGE: DC24v(output)/AC100-240V (input)
WIDTH: 40mm
POWER: 24W/M
LUMEN: 110-120lm/w
CRI: >85
CCT: White
MATERIAL: Aluminum+PC Cover+PP Cover
ACCESSORIES: LED ControiSystem
REMARK: Each group is composed of 5 parts, it can stand alone for the standard size and be installed against the wall and ceiling while exceeding the standard width to be customizable.
WDE1009B
VOLTAGE: DC24v(output)/AC100-240V (input)
WIDTH: 100mm
POWER: 32W/M
LUMEN: 110-120lm/w
CRI: >85
CCT: White
MATERIAL: Aluminum+PC Cover+PP Cover
ACCESSORIES: LED ControiSystem
REMARK: Each group is composed of 5 parts, it can stand alone for the standard size and be installed against the wall and ceiling while exceeding the standard width to be customizable.
WDE1006
VOLTAGE: DC24v(output)/AC100-240V (input)
WIDTH: 240mm
POWER: 48W/M
LUMEN: 110-120lm/w
CRI: >85
CCT: White
MATERIAL: Aluminum+PC Cover+PP Cover
ACCESSORIES: LED ControiSystem
REMARK: Each group is composed of 5 parts, it can stand alone for the standard size and be installed against the wall and ceiling while exceeding the standard width to be customizable.
WDE1015S (4 meter)
VOLTAGE: DC24v(output)/AC100-240V (input)
WIDTH: 100mm
POWER: 48W/M
LUMEN: 110-120lm/w
CRI: >85
CCT: White + Warm
MATERIAL: Aluminum+PC Cover+PP Cover
ACCESSORIES: LED ControiSystem
REMARK: Each group is composed of 5 parts, it can stand alone for the standard size and be installed against the wall and ceiling while exceeding the standard width to be customizable.
WDE1015D (7 meter)
VOLTAGE: DC24v(output)/AC100-240V (input)
WIDTH: 100mm
POWER: 48W/M
LUMEN: 110-120lm/w
CRI: >85
CCT: White + Warm
MATERIAL: Aluminum+PC Cover+PP Cover
ACCESSORIES: LED ControiSystem
REMARK: Each group is composed of 5 parts, it can stand alone for the standard size and be installed against the wall and ceiling while exceeding the standard width to be customizable.
